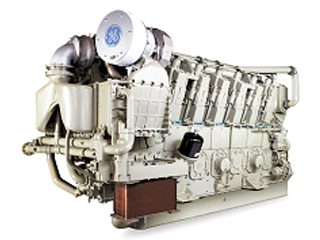

WABTEC is one of the largest manufacturers of medium-speed diesel engines with new type non-SCR diesel technology which can meet the emission standard of EPA Tier4 and IMO TierⅢ. L250, Power from 1700Kw-2500Kw. It is reliable, durable, efficient, environmental friendly, energy-saving and easy to install and maintain. Meet emission standards and reduce emissions up to 70% with EGR. Eliminate urea use and storage to preserve cargo and tank space, easy installation, space and weight savings of 75%. No need to install SCR system to reduce initial investment and no operating cost.
| TIER III 6L250 | ||
| Engine data | ||
| Number of cylinders | 6 | |
| Stroke cycle | 4 | |
| Cylinder arrangement | inline | |
| Bore | mm（in） | 250（9.84） |
| Stroke | mm（in） | 320（12.6） |
| Compression ratio | 15.0:1 | |
| Power/900rpm | ||
| MCR | Kw（hp） | 1700（2280） |
| Power/1000rpm | ||
| MCR | Kw（hp） | 1900（2548） |
| Engine dimension | ||
| Length | mm（in） | 4691（184.7） |
| Width | mm（in） | 2006（79） |
| Height | mm（in） | 2809（110.6） |
| Crank center line to sump | mm（in） | 940（37） |
| Crank center line to mounting feet | mm（in） | 308（12.13） |
| Exhaust diameter | mm（in） | 260（10.2） |
| Dry weight | kg（lbs） | 19,944（43,876） |
