WABTEC is one of the largest manufacturers of medium-speed diesel with new type non-SCR diesel technology which can meet the emission standard of EPA Tier4 and IMO TierⅢ, Power from 2726KW -4660KW. It is Reliable, durable, efficient, environmental friendly, energy-saving and easy to install and maintain.

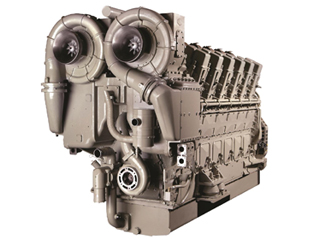

TIER II 16V250 MDB | ||
Engine data | ||
Number of cylinders | 16 | |
Stroke cycle | 4 | |
Cylinder arrangement | V | |
Bore | mm(in) | 250(9.8) |
Stroke | mm(in) | 320(12.6) |
Compression ratio | 16.8:1 | |
Power/900rpm | ||
Continuous | Kw(hp) | 3632(4870) |
Max | Kw(hp) | 3995(5357) |
Power/1000rpm | ||
Continuous | Kw(hp) | 4038(5415) |
Max | Kw(hp) | 4442(5957) |
Power/1050rpm | ||
Continuous | Kw(hp) | 4239(5685) |
Max | Kw(hp) | 4664(6254) |
Engine dimensions | ||
Length | mm(in) | 5684(224) |
Width | mm(in) | 2468(97) |
Height | mm(in) | 3275(129) |
Crank center line to sump | mm(in) | 1162(46) |
Crank center line to mounting feet | mm(in) | 536(21) |
Exhaust diameter | mm(in) | 610(24) |
Dry weight | kg(lbs) | 30,844(68,000) |
