Your present position: WABTEC Others -8L250 MDB

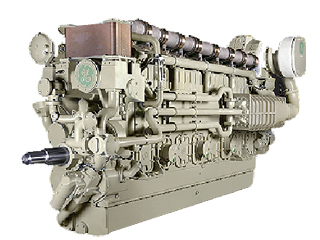

8L250 MDB

     WABTEC is one of the largest manufacturers of medium-speed diesel with new type non-SCR diesel technology which can meet the emission standard of IMO TierⅡ, Power from 1498KW-2550KW. It is reliable, durable, efficient, environmental friendly, energy-saving and easy to install and maintain.



TIER II 8L250 MDB
  Engine data
  Number of cylinders 8
  Stroke cycle 4
  Cylinder arrangement inline
  Bore mm(in) 250(9.84)
  Stroke mm(in) 320(12.6)
  Compression ratio 16.8:1
  Power/900rpm
  Continuous Kw(hp) 1998(2679)
  Max Kw(hp) 2198(2947)
  Power/1000rpm
  Continuous Kw(hp) 2219(2976)
  Max Kw(hp) 2441(3274)
  Power/1050rpm
  Continuous Kw(hp) 2330(3125)
  Max Kw(hp) 2564(3438)
  Engine dimensions
  Length mm(in) 5949(234)
  Width mm(in) 1950(77)
  Height mm(in) 2962(116)
  Crank center line to sump mm(in) 940(37)
  Crank center line to mounting feet mm(in) 308(12)
  Exhaust diameter mm(in) 457(18 )
  Dry weight kg(lbs) 20,856(45,980)
