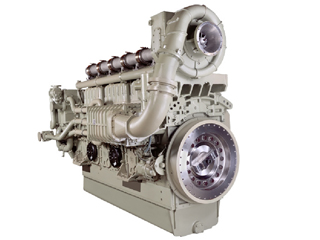

WABTEC is one of the largest manufacturers of medium-speed diesel with new type non-SCR diesel technology which can meet the emission standard of EPA Tier4 and IMO TierⅢ, L250,Power from 1498KW -2500KW. It is Reliable, durable, efficient, environmental friendly, energy-saving and easy to install and maintain.
TIER II 6L250MDB | ||
Engine data | ||
Number of cylinders | 6 | |
Stroke cycle | 4 | |
Cylinder arrangement | inline | |
Bore | mm(in) | 250(9.84) |
Stroke | mm(in) | 320(12.6) |
Compression ratio | 16.8:1 | |
Power/900rpm | ||
Continuous | Kw(hp) | 1498(2009) |
Max | Kw(hp) | 1648(2210) |
Power/1000rpm | ||
Continuous | Kw(hp) | 1664(2232) |
Max | Kw(hp) | 1831(2455) |
Power/1050rpm | ||
Continuous | Kw(hp) | 1748(2344) |
Max | Kw(hp) | 1922(2578) |
Engine dimensions | ||
Length | mm(in) | 5138(202) |
Width | mm(in) | 1950(77) |
Height | mm(in) | 2962(116) |
Crank center line to sump | mm(in) | 940(37) |
Crank center line to mounting feet | mm(in) | 308(12) |
Exhaust diameter | mm(in) | 457(18 ) |
Dry weight | kg(lbs) | 17,295(38,129) |
